AutoCAF2 +SIR Surface Insulation Resistance & Electrochemical Migration Test System

GEN3 High‑Performance CAF+SIR Comprehensive Test System. It is used to evaluate the failure risks of Electrochemical Migration (ECM), Conductive Anodic Filament (CAF) and Surface Insulation Resistance (SIR) for PCB base materials, prepregs and PCBA under high‑temperature high‑humidity plus DC bias conditions. It is the core equipment for material qualification of automotive‑electronic and high‑reliability industrial PCB. The unit performs only electrical measurements; an external temperature‑humidity chamber (typical 85℃/85% RH) is required.

Product Parameters

SPECIFICATION

  1. Test Unit: 52×34×17cm;

  2. Unpacked Weight (256‑channel): 17kg, Gross Weight: 33.5kg;

  3. Measurement Speed: Optimized for data management, 100 ms per‑channel duration

  4. Measurement Sensitivity: 1pA (approx. 4‑digit resolution);

  5. Measurement Voltage Range: 500V;

  6. Extended Voltage Range for CLR‑HV bridge converter (optional unit): 1250V;

  7. Pre‑test balance‑voltage delay: interval can be as short as 40 seconds;

  8. Number of Test Points: Each measurement board supports 16 test channels.

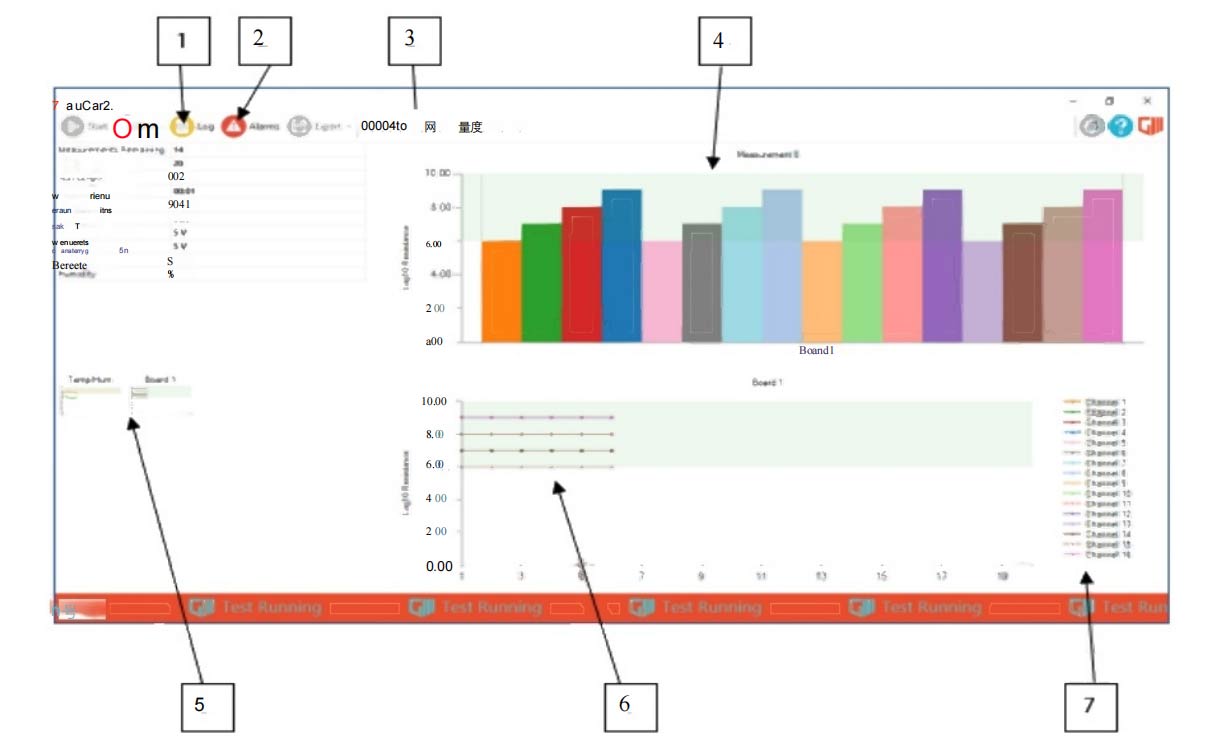

Users have full access to the software with the following functions:

1. Communication Test Log

2. Low‑Measurement Alarm Log

3. Measurement Timer

4. Real‑time Data

5. Temperature‑Humidity Board Profile Selection

6. Over Time

7. Graph Channel View Index微信图片_2026-08-24_145815_594.jpg
